Steel Frame SMT Assembly Machine Stable PCB Linking Conveyor With SMEMA Interface

Product Categories
SMTPLAZA CO.;LIMITED
Contact Now

Steel Frame SMT Assembly Machine Stable PCB Linking Conveyor With SMEMA Interface

Brand Name : FSR

Model Number : FSR-500

Certification : CE ISO

Place of Origin : China

MOQ : 1piece

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100pcs per month

Delivery Time : 20days after downpayment

Packaging Details : Woodcase packing with foam

Brand : OEM

Model : PCB linking conveyor

aluminum profile rai : 35x55mm

Control system : PLC

Operation interface : SMEMA

Platform Material : ESD Rubber Mat

Contact Now

SMT assembly machine Stable Quality PCB Linking Conveyor with SMEMA interface

  1. Steel frame structure, surface computer powder (electrostatic spraying)
    2. 33*55mm Special aluminum profile rail
    3. Special dovetail rail adjustment width.
    4. One CDD light sensation at the entrance and exit ends.
    5. Circuit board testing mode.
    6. Using a dedicated aluminum slot for transfer orbit to prevent PCB stuck.
    7. Heavier bottom design, not easily shift.
    8. Machine length can be customized.
    9. Compatible with SMEMA interface.
  2. ．Anti-static workbench-- ESD Rubber Mat
  3. Dedicated PLC controller control.
Product Name Standard SMT link/inspection Conveyor
Rail Length(mm) 500 mm 1000 mm 1200 mm 2000 mm
Dimension (mm) 500*700*950 1000*700*950 1200*700*950 2000*700*950
PCB Width 50 to 300 mm
PCB Direction L to R or R to L
Speed Adjustable
Control System PLC
Communication SMEMA for both in & out
Power Supply

1 PH AC 220V 50/60Hz

(Option:110V to 380V)
Weight 70 Kg 95 Kg 105 Kg 150 Kg

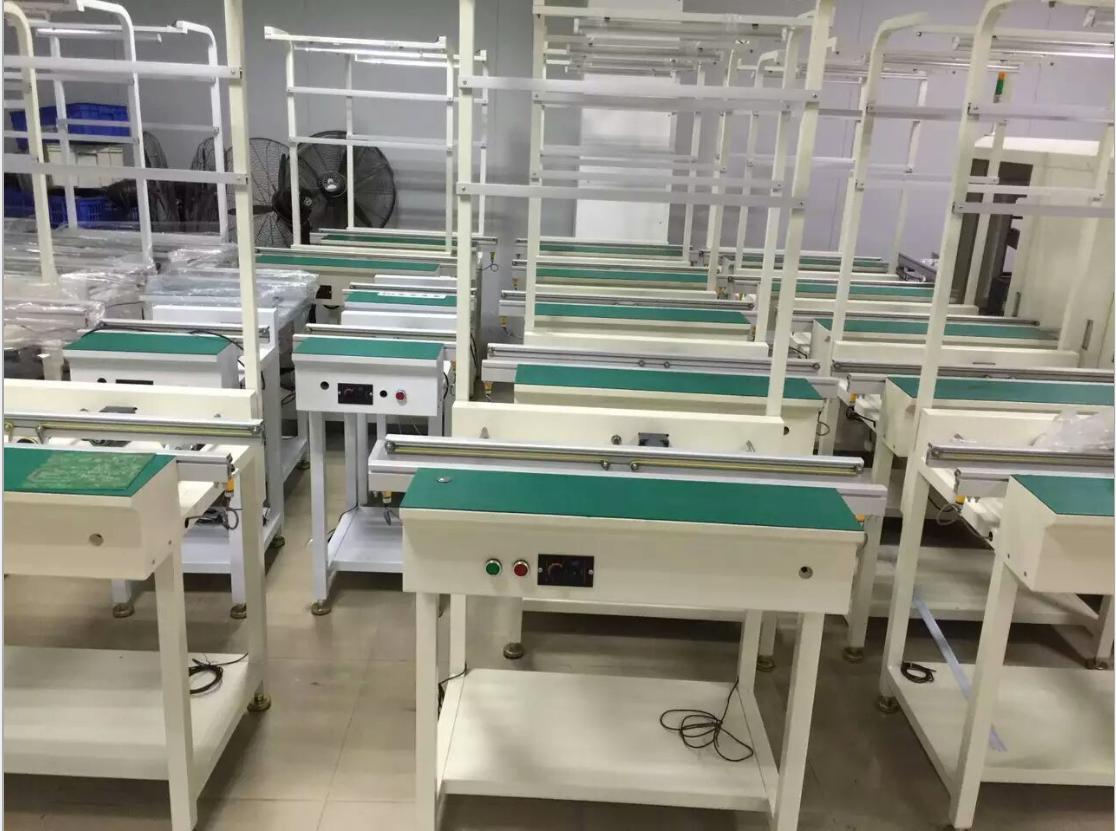

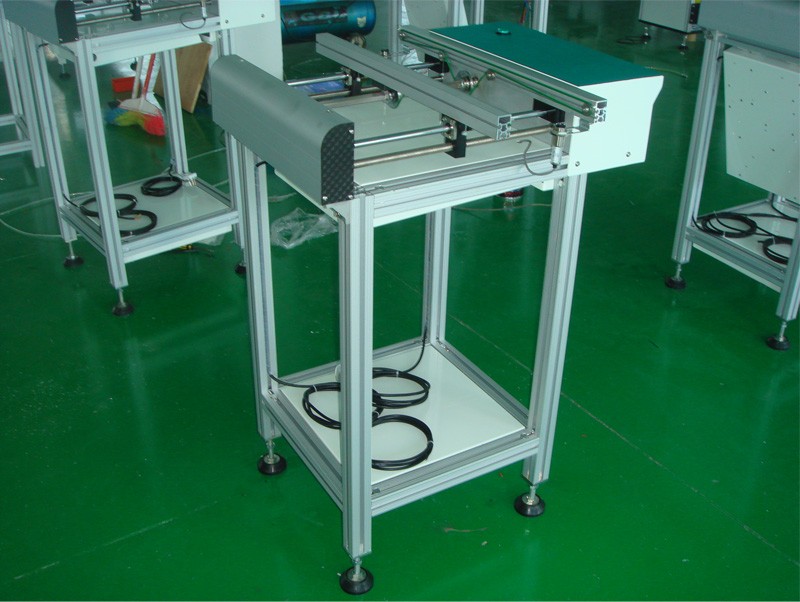

Linking Conveyor

Steel Frame SMT Assembly Machine Stable PCB Linking Conveyor With SMEMA Interface

Steel Frame SMT Assembly Machine Stable PCB Linking Conveyor With SMEMA Interface

Machine Pcking :

Steel Frame SMT Assembly Machine Stable PCB Linking Conveyor With SMEMA Interface
